Waiting queue

Visitors queue service is used for managing the visitors queue for the 8x8 video meetings by keeping visitors websocket connections opened and when a moderator opens the meeting, the visitors are notified and allowed to join the meeting. The moderators should be able to see the visitors count.

Authentication

The JWT token is sent at least in the CONNECT STOMP message as connect header - see sample code:

headers = {
        Authorization: 'Bearer ' + token
    };

    stompClient.connectHeaders = headers;

    stompClient.onConnect = (frame) => {
        setConnected(true);
        console.log('Connected: ' + frame);

        stompClient.subscribe('/secured/conference/visitor/topic.' + conference, (message) => {
            showMessage(message.body);
        }, headers);
    };

Visitors

This endpoint should accept only visitor's jaas tokens for a conference specified as param to the endpoint and the token to be valid for that room. The token for visitors contains:

context: {
    user: {
        role: ‘visitor'
    }
}

It allows visitors to connect to the /visitors websocket and wait for the start message to be published on /secured/conference/visitor/topic.{conference} topic.

Moderators

This endpoint should accept only moderator's jaas tokens for a conference specified as param to the endpoint and the token to be valid for that room. The token for moderator contains:

context: {
    user: {
        moderator: true
    }
}

It allows moderators to connect to the /moderator websocket and wait for the status message to be published on /secured/conference/state/topic.{conference} topic (triggered every 15 seconds).

Flow

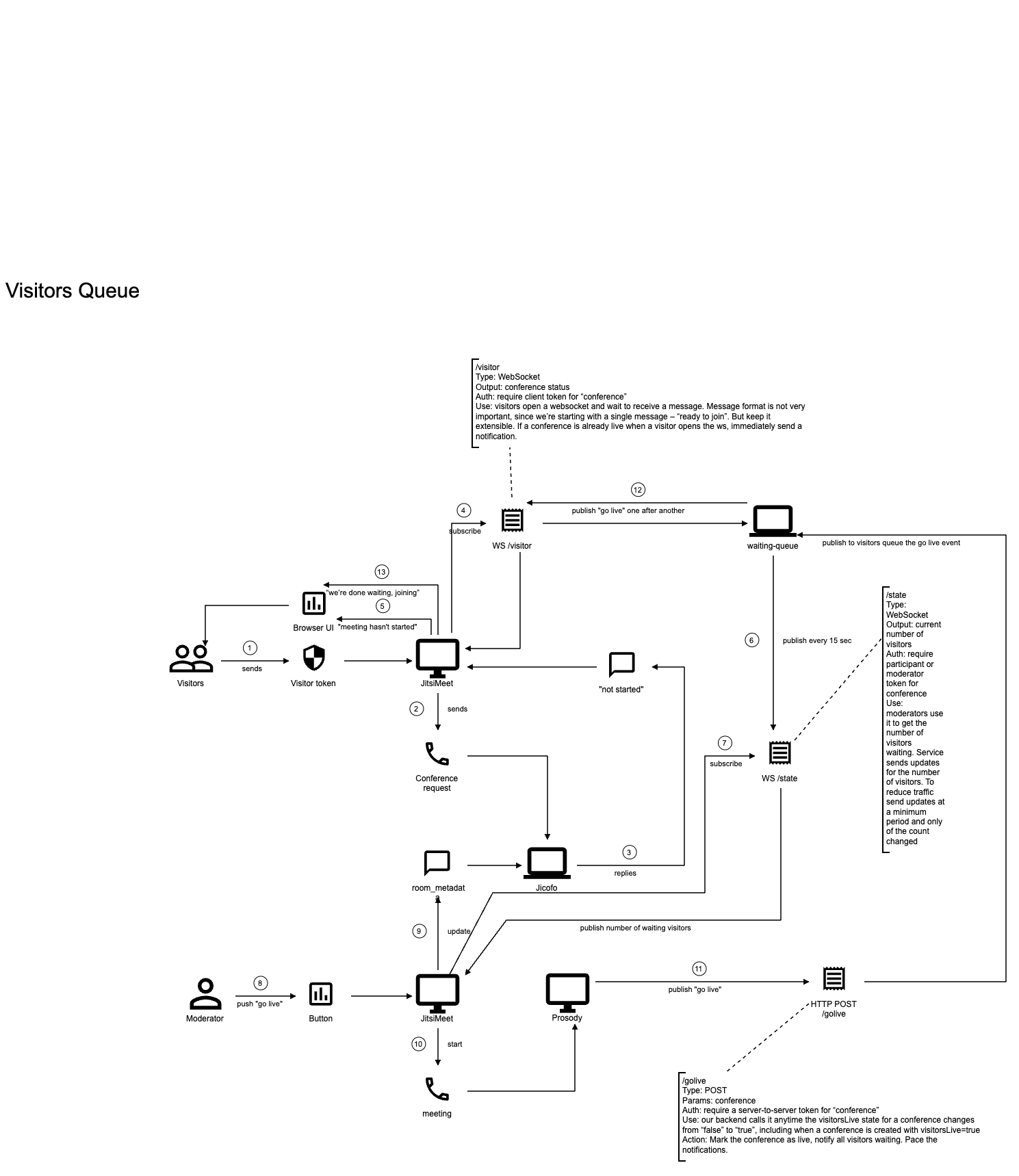

The flow is depicted below:

Topics

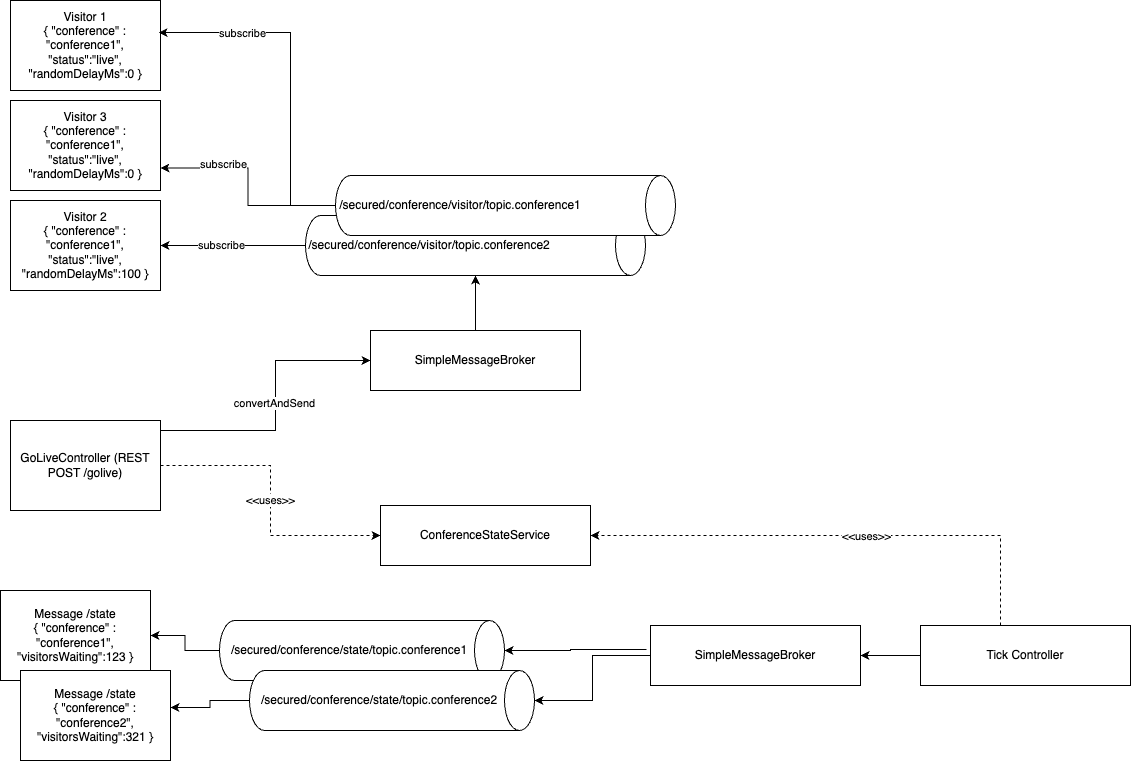

The topics used:

API

Endpoint	Type	Auth	Use
WS /visitor	WebSocket/STOMP	require client token for conference	Visitors open a websocket and wait to receive a message. Message format is not very important, since we’re starting with a single message – “ready to join”. But keep it extensible. If a conference is already live when a visitor opens the ws, immediately send a notification
WS /state	WebSocket/STOMP	require client token for conference	Moderators use it to get the number of visitors waiting. Service sends updates for the number of visitors. To reduce traffic send updates at a minimum period and only if the count changed
POST /golive	REST	require a server-to-server token for conference	Our backend calls it anytime the visitorsLive state for a conference changes from “false” to “true”, including when a conference is created with visitorsLive=true

Note: CONNECT and MESSAGE STOMP frames expect an additional header for Authorization

Sample code

There is sample code showing how to handle the visitor case here.
